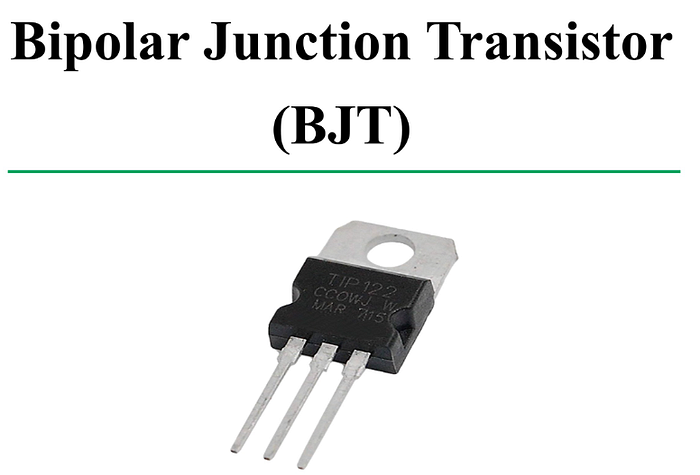

Your Ultimate BJT (Bipolar Junction Transistor) Buying Guide

Bipolar Junction Transistors (BJTs) are essential electronic components that play a crucial role in amplification and switching applications. Understanding the key considerations when buying BJTs is vital for selecting the right component for your electronic projects. This comprehensive guide will walk you through the important factors to consider when purchasing BJTs.

BJT Types:

a. NPN Transistors:

• Overview: NPN transistors have a positive layer of material (P-type) between two negative layers (N-type). They are commonly used for amplification and switching applications. 2N5088 and C945 are the most common NPN transistors.
• Applications: Signal amplification, switching circuits.

b. PNP Transistors:

• Overview: PNP transistors have a negative layer of material (N-type) between two positive layers (P-type). They operate in a manner opposite to NPN transistors. BC327 is the most common NPN transistors.
• Applications: Signal amplification, switching circuits.

Power Ratings:

a. Collector-Base Voltage (V_CB):

• Definition: Maximum voltage across the collector and base terminals.
• Consideration: Choose a BJT with a collector-base voltage rating higher than the maximum voltage in your circuit.

b. Collector Current (I_C):

• Definition: Maximum current flowing from the collector to the emitter.
• Consideration: Select a BJT with a collector current rating suitable for your application.

Frequency Response:

a. Transition Frequency (f_T):

• Definition: Frequency at which the current gain begins to decrease.
• Consideration: Higher f_T is desirable for applications requiring high-frequency response.

Gain (h_FE):

a. DC Current Gain:

• Definition: Ratio of the collector current to the base current (h_FE or β).
• Consideration: Choose a BJT with the appropriate DC current gain for your specific application.

Package Type:

a. TO-92, TO-220, TO-18, etc.:

• Overview: Different package types with varying sizes and mounting configurations.
• Consideration: Select a package type that suits your circuit layout and thermal requirements.

Temperature Range:

a. Operating Temperature Range:

• Definition: Range of temperatures in which the BJT operates reliably.
• Consideration: Ensure the BJT’s operating temperature range aligns with your application environment.

Brand and Quality:

a. Reputable Manufacturers:

• Consideration: Purchase BJTs from well-known manufacturers to ensure product quality and reliability.

Application-Specific Considerations:

a. Amplification vs. Switching:

• Consideration: Choose a BJT optimized for either amplification or switching, depending on your application.

b. Noise Considerations:

• Consideration: For sensitive applications, select BJTs with low noise characteristics.

Datasheet Analysis:

a. Comprehensive Datasheet:

• Consideration: Thoroughly analyze the datasheet for detailed specifications and characteristics.

Availability and Cost:

a. Availability:

• Consideration: Ensure the selected BJT is readily available in the market.

b. Cost:

• Consideration: Factor in the cost of the BJT, balancing performance and budget constraints.

Conclusion:

Choosing the right BJT involves considering various factors such as type, power ratings, frequency response, gain, package type, temperature range, brand, application-specific requirements, datasheet analysis, and cost. Carefully assess each criterion based on your project needs to make an informed decision. Always refer to the datasheet and specifications provided by the manufacturer for accurate information.
